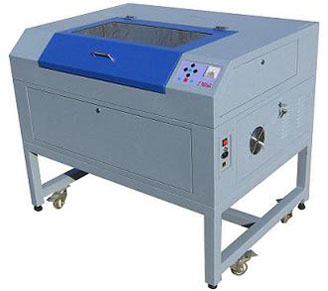

Laser Engraving Machine
The X series Co2 Laser Engraving Machine is lower cost than M series, the Z axis adjust table is optional and it is shorter than M series Laser Engraver, other feature is same.
In order to purchase in large quantities and reduce the cost, Redsail X series Laser Engraving Machines is the best choice; by the way, Redsail Laser Engraving Machine use the smart design, the frame of the machine can be split into 2 parts, so it is easy to be moved through the narrow door.
The laser power of Redsail X series laser engraving machines from 50W to 80W.
Redsail Laser Engraving Machine Specifications
| Модельl | X700 | X900 | X1201 |
| Laser tube | Water cooling Co2 sealed glass | ||
| Control system | 32 Bit DSP | ||
| Drive type | Stepper motor | ||
| Laser Power | 50W | 60W | 80W |
| Working Size (mm) | 500 x 700 | 600 x 900 | 900 x 1200 |
| Adjust Table (mm) | 160 | 160 | No |
| Max speed | 1000 mm/s | ||
| Image form | Plt, Dxf, Bmp, Ai, Dst | ||
| Resolution | 1000 DPI | ||
| Repeatability | 0.01 | ||
| Interface | PCI / USB | ||
| Power | 110~240V 50~60Hz | ||
| Warranty | 12 Months | ||
| Machine dimensions (mm) | 1150*860*970 | 1400*960*970 | 1700*1260*970 |
| Package dimensions (mm) | 1270*980*1100 | 1520*1080*1100 | 1820*1380*1100 |
| G. W. (Kg) | 185 | 203 | 325 |
