Laser Engraving Machine

CATEGORY AND TAGS:
Laser Engraving Machine, Product

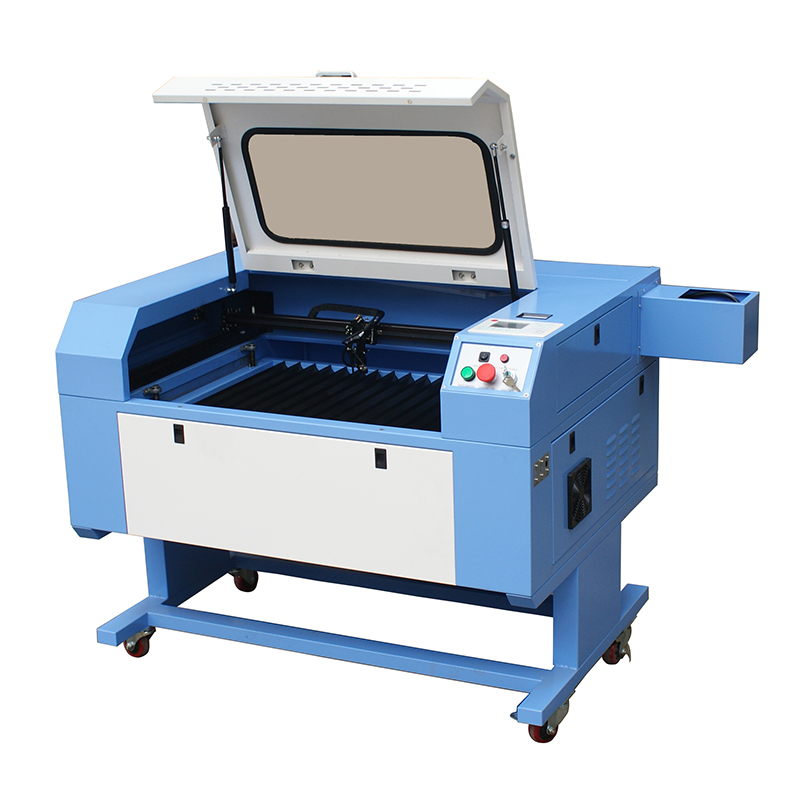

The X series Co2 Laser Engraving Machine is lower cost than M series, it is with Z axis adjustable table which is shorter than M series Laser Engraver, other feature is same.

In order to purchase in large quantities and reduce the cost, Redsail X series Laser Engraving Machines is the best choice; by the way, Redsail Laser Engraving Machine use a smart design, the frame of the machine can be split into 2 parts, so it is easy to be moved through the narrow door.

enquiry

Specifications

The X series Co2 Laser Engraving Machine is lower cost than the M series, it is with Z axis adjustable table which is shorter than M series Laser Engraver, other feature is same.

The laser power of Redsail X series laser engraving machines from 50W to 130W.

Redsail Laser Engraving Machine Specifications

Model	X700	X900	X1390
Laser tube	Water cooling Co2 sealed glass
Control system	32 Bit DSP
Drive type	Stepper motor
Laser Power	50W	60W	80W
Working Size (mm)	500 x 700	600×900	900 x 1300
Adjust Table (mm)	200	200	No
Max speed	1000mm/s
Image form	Plt, Dxf, Bmp, Ai, Dst
Resolution	1000 DPI
Repeatability	0.01
Interface	USB3.0 / USB Disk
Power	110~240V 50~60Hz
Warranty	12 Months
Machine dimensions (mm)	11608901030	1370970942	18101340960
Package dimensions (mm)	16409901170	184010801170	192014401220
GW (Kg)	185	203	330
